It's A Sneaker Thing Part 6 - More MAG Mods.

Just when I think I am all done on these shoes, I tinker and come up with something new.  I am back to #GlowInTheDark for the illumination in the strap and soles because I (once again) broke wires and just do not have the patience to keep repairing these.  Whilst I do enjoy modding these, I view repairs as counter productive.

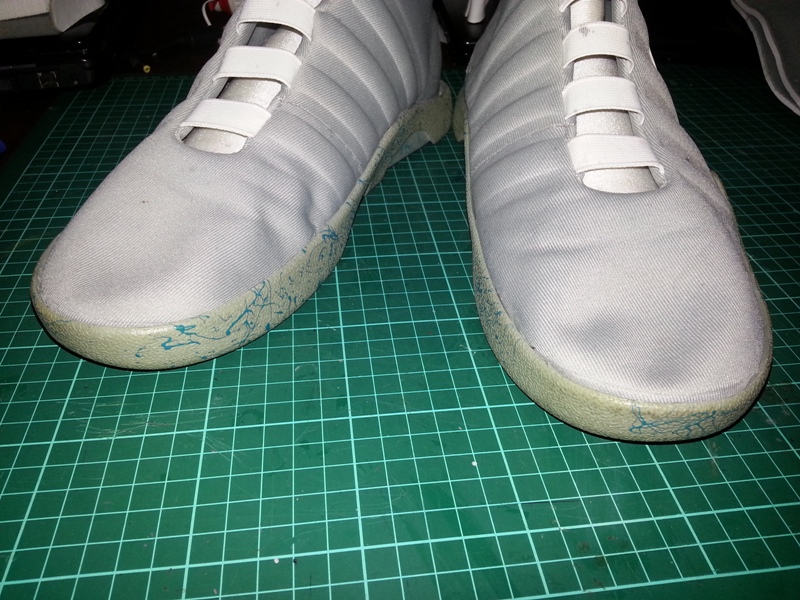

Clear Soles

I am now making these in 3 different sizes that fit all the replica MAG shoe sizes.

New Super Bright Glow Kits



The actual colour of the glow kits (and the EL used in the real shoes) is CYAN which is equal amounts of green and blue light.  Normally, photos of the light tends to bias the blue [top image] and I was finally able to capture the true colour [2nd image].  These are mixed at 50% per volume which is way more than the recommended 15% per volume.  Adding this much glow powder makes the mix yellow, so I add a drop of Royal Blue translucent pigment to tint the mix more blue.  The cool thing is that the colour of the mix when not charged is now the same colour as it is when it is fully charged.

Full Sized Decals

 I was always bothered by the undersized letters on the heel cups.  I had attempted to make (hand cutting) letters and in the end, I decided to get letters machined.  When I make these kits, I degas the polyurethane (which I tint to the correct colour first) in the molds and this gives be 100% bubble free parts.

 New Ankle Buckles







I have used the CP-3D printed part for ages.  The part is well made, but has always been over sized.  The original rubber part is a nice size, just too flat.  One of the first things I ever made to mod these shoes was back from the MP MAG days when I made a vacuum formed part.  I recently used these parts to make a new master part that I molded and cast.

After a few experiments, I decided to make these from a hard plastic instead of a soft rubber.  The reason is, the rigid part is not only stronger, it adds support to the back of the ankle.

Nicely Proportioned

So far I have made custom Clear Soles, Heel Cups, decals, LED bubbles, and now  the new ankle buckles.  Each part has been designed to not only bring the look of the shoe closer to the screen used shoes, but to also keep the look of the shoe balanced from sole to cuff.  These new ankle buckles really complete this look.

Mark

Back To The Top

New Vacuum Chamber And Vacuum/Thermo Forming Rig.

I have had my vacuum chamber up and running for a while now and this allows me to degas molding and casting materials for bubble free pours. I have also made myself a vacuum form that has had teething issue - heat or suction and sometimes both.  Rather than fill my work space with several pieces of equipment, I wanted to create a rig that would serve multiple uses.

The New Vacuum Pump

My first vacuum pump was a 1/4 HP, single stage, 3CFM pump that took just just under 3 mins to evacuate my current vacuum chamber.  This new 1HP, 2 stage, 9CMF pump pulls a vacuum in under 1 min.  So whilst this has lengthened the work time of the product, it is still not 100% perfect.  Tiny bubbles of air form during the pour and sometimes get trapped on the mold surface.  The ability to degas the product in the mold is appealing because it will completely eliminate these issues.    To do this, I need a larger diameter chamber.

New Large Diameter Pipe Section

This new chamber still needs to be made up and will need custom bases and lids as well as an array of pluming to attach the new pump.  The OD of this pipe is 800mm and the ID is 706mm.  It is 150mm tall.  This is large enough to allow me to place my #ClearSole molds flat inside and because I will be able to mix, pour and degas in the molds, it won't matter if it takes 2min to achieve a vacuum again.

I am also designing this chamber to be modular where a 2nd ring like this can be added to the top to make the new chamber taller for 'female tooled' vacuum and thermo forming of plastic.

Female Tooling Vacuum Forming Test.

This dome was pulled into a hollow tube.  It is 250mm wide and was made from 3mm white Perspex.  I did this part as a test simply using the current vacuum chamber where I achieved a seal first, created suction of about 15"HG and then proceeded to heat the plastic.

Normally when you vacuum form, you heat the plastic first, then place it over the tool and evacuate the air.  You are taxed on time here as seconds could and if the seal is not good or the plastic cools too fast, you DO NOT get a get a good pull.

In this case, I the seal was perfect and as I heated the plastic to pliable state, the suction immediately pulled the plastic down.  In a traditional vacuum forming heating system, the plastic tends to warp and bow upwards towards the heater.  If it touches the heater, it has ruined the plastic.  In this case, as soon as the plastic was pliable, it was sucked down away from the heating source.

I'll update this blog as I progress with this project.

Mark

Back To The Top

STAR WARS 1/12" Figures and Models

There is no question or doubt, STAR WARS changed my life.  I saw the first film in a cinema when I was just turning 6 and now at age 44, I am looking forward to the new film in about 2 weeks time [December 17, 2015].

I have collected the action figures since I was a kid and recently have started collecting the 6" or 1/12 scale figures.   Most of the figures in this scale are from the Hasbro Black Series line.  Recently, I discovered a model company from Japan that makes even more accurate 1/12 scale model kits and figures.

BANDAI Model Kits

These are the four kits I have bought so far.  Each is a clip together, no paint required, sprue model kit, with exceptional details and great scale.  Even though I am not a modeler, I would rate these as needing at least a Medium Level of skill.  Once assembled, each is full pose-able.

 R2-D2 and C-3PO

R2-D2 and C-3PO are the two droids we all grew to love and both are stunning in these kits.  C-3PO is all gold chrome and looks stunning.

R5-D4 comes in the R2 box.  The two are essentially the same model kit with head shape, colour and few other details making them different.

 Bandi Vs Hasbro



So my goal is collect as many of the "Original 12" in this 1/12 scale as I can and when I find something that is far better than what I already have, I will upgrade.

What is interesting though is that not all 1/12 scale is the same.  Look at the differences between the Black Series and this Bandai model kit on the left.  The Bandai is a sure winner here and the Black Series has been put back in its box and will be sold.

[I will update this blog when I assemble Darth Vader and the Stormtrooper].

Mark

Back To The Top



Its A Sneaker Thing Part 5 - Modding MAGs Continues

This blog will be long.  In the last blog on MAG modding, there were several points I talked about that could not be corrected.  Since then, many have been, though one or still remain.  Since the last blog, my molding and casting skills have reached a whole new level and where I am actually able to make perfectly bubble free parts now.



 In the last blog, I had made a 'universal' clear sole part that was made from the sole of a size US13 and was modified to fit my US9.5s.  Since then, I have re-designed the entire molding and casting process and now offer 3 different sizes.  As it turns out, some sole sizes do actually fit other sizes.

The 3 sizes I make (and sell) are:

Small [fits US8 and US8.5]

Medium [fits US9.5 and US10]

Large [fits US11, US12 and US13]

Crafting New Master Parts

The goal here was not only to cater for those with smaller shoes than a US13, but to also capture details lost in the original molding and casting process.  The original master part of the 3D part was cast as a 3D part.  There were many fails with air being trapped in the mold.  The solution was to break the 3D part down and open back mold them.

Flattened Out Master

New Vs Old

As you can see in these images, the finish of the new parts are way better than that of the original part shown above.  The parts have to be trimmed and assembled into the complex 3D part prior to attaching them to the shoes.

Making Them More Screen Accurate

Research suggests that the mid-soles of the screen used pairs were originally cast in a white rubber, the clear soles attached and then a light grey texture added over the remaining mid-sole.  To better recreate the look of the screen used shoes, I have added white rubber between the grey mid-sole and the clear rubber outer soles.   I did not actually end up using the set of soles in the first image above.

New Lettering

These are not the final letters as the master part is not yet machined but will be identical to the graphic above.  This master was made on a CNC milling machine and a silicone mold made from that.  The castings came from the silicone mold.

The Final Lettering

Upgrading The Lights To EL

12 months ago, I was running LEDs.  I had never 'wired' a shoe before and as a result, had a few wire breakages.  After 3 repairs, I removed the LEDs for a Glow In The Dark system where I would mix a Cyan glow powder into the clear rubber.

After using GITD for almost a year, I decided to give electrics another go and this time use EL.  EL or Electroluminescent sheet is an electrically charged chemical bond that lights up when an AC charge is applied.  Unlike LEDs which tend to have "hot-spots", EL lights uni-formally.  It requires an inverter to convert DC to AC.  The sheet itself is flexible, but can not be bent and is sensitive to shorts along the edges.

Based on the results of the tests, I elected to run a 9V system over the previous 3V system I was running for the LEDs.  My tests have given up to 24 hours of continuous run time.

Mounting The Power Supply

Pre-wire, Sole Attachment And A Few New Details

Sculpting The Larger Heel

One thing that makes the MAG look cool is the huge Heel Cup and really low profile mid-sole.  To recreate this, I had to remove the Heel Cup, build it up with rubber and re-attach it over the back of the mid-sole.  My first attempt that this made it look like a 'growth'.  The trimmed look now has a cleaner line.

Casting New Clear Ankle Bubbles

Apart from larger letters, I also wanted to replicate the lower profile of the heel, the more rounded heel cup and larger lights bubble.  The new molds are yet to be finalized and these have been free formed over the half mold I have already made.

The Sock Toe

The MAGs seen in the film do not have a toe box.  The type of toe on these shoes is called a 'sock toe' and is very comfortable.  There are both branded and non branded shoes out now that also have this design.

To make my toe box, I had to open the shoe and remove the toe box.  This was done with some heat and patience and once the toe cap is lifted, the stitching is removed and the layers carefully separated.  Then the toe box can be removed.

Care must be taken with alignment to ensure the shoe goes back together without distortions and wrinkles.

 Light Tests

 On Show at SupaNova 2015

Back To Glow In The Dark

After more electrical fails, further testing of the Glow Powder, I have decided to go back to a Passive Illumination System.  When mixed at 50% per volume and fully charged, the new Glow system is very bright even in high ambient light environments.  And of course, no chance of electrical fails.

#ClearSoles #GlowInTheDark #NikeMAG

Mark
